หล่อโซ่ Pintle ระดับ 400 สำหรับเครื่องกรองน้ำเสีย เครื่องหว่านปุ๋ยและโรงงานน้ำตาล

Cast 400 class pintle chains are of one-piece cast offset link construction joined together by steel pins. The pins are securely locked against turning in the sidebars by generous head stops that are cast on the links. The head stops are positioned to provide a maximum locking effect when the chain is under load. This confines the wear to the part of the pin inside the barrel of the link, where it is distributed over the maximum area. This ensures the best durability of the chain.

ใบเสนอราคา

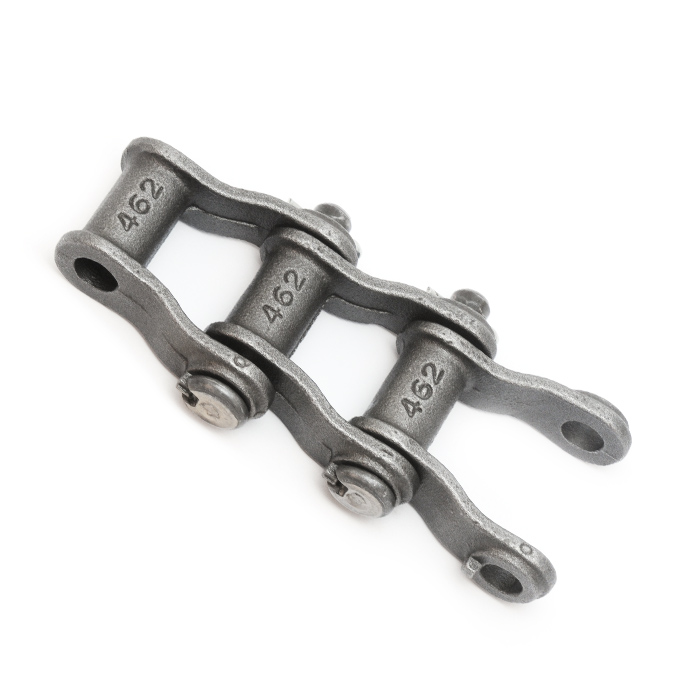

Cast 400 Class Pintle Chain 434 442 445 452 455 462 477 483 488 4103 4124
Cast 400 class pintle chains are of one-piece cast offset link construction joined together by steel pins. The pins are securely locked against turning in the sidebars by generous head stops that are cast on the links. The head stops are positioned to provide a maximum locking effect when the chain is under load. This confines the wear to the part of the pin inside the barrel of the link, where it is distributed over the maximum area. This ensures the best durability of the chain.

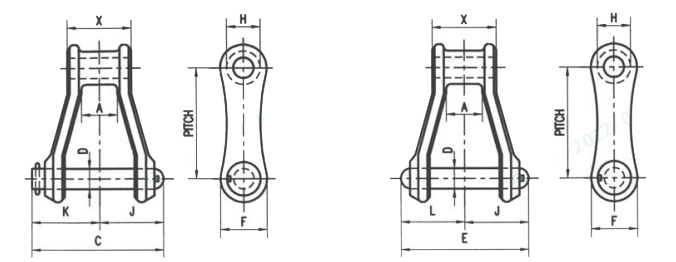

Cast 400 Class Pintle Chain Sizes Specification

โซ่ NO.
ขว้างเป็นนิ้ว
ขนาดเป็นนิ้วทศนิยม
A
C
D
E
F
H
J
K
434
1.398
0.62
1.78
0.25
1.75
0.66
0.50
0.84
0.94
442
1.375
0.62
2.03
0.31
1.88
0.75
0.56
0.97
1.06
445
1.630
0.69
2.03
0.3
1.88
0.75
0.62
0.97
1.06
452
1.5006
0.62
2.22
0.38
2.06
0.84
0.69
1.03
1.19
455
1.630
0.69
2.22
0.38
2.06
0.84
0.62
1.03
1.19
462
1.634
0.88
2.56
0.44
2.38
0.94
0.72
1.25
1.31
477
2.308
0.69
2.38
0.44
2.25
1.00
0.72
1.16
1.22
483
4.000
1.06
3.38
0.50
3.15
1.27
0.94
1.69
1.69
488
2.609
0.94
2.94
0.44
2.75
0.94
0.88
1.44
1.50
4103
3.075
1.12
3.56
0.75
3.25
0.50
1.2
1.75
1.81
4124
4.063
1.2
4.75
0.81
4.40
1.75
1.72
2.25
2.50

Cast 400 Class Pintle Chain Available Attachments

โซ่ NO.
ขว้างเป็นนิ้ว
ลิงค์ต่อ
เท้า 10
น้ำหนักต่อเท้าปอนด์
ค่าเฉลี่ยความแข็งแกร่งสูงสุด Lbs
ปอนด์ดึงโซ่ที่อนุญาตได้
เอกสารแนบที่มีอยู่
434
1.398
86
1.0
5600
720
442
1.375
88
1.4
7800
1000
K1
445
1.630
74
1.5
7800
1000
K1 F2
452
1.506
80
2.0
9100
1250
A88 D5 E1 K1
455
1.630
74
1.9
9490
1260
A1 A3 K1 F2 F21 M1
462
1.634
74
2.5
11700
1800
A12 G1 K1 F2
477
2.308
52
2.0
12480
1640
A22 A11 D5 G1 G19 K1 F2 F6 F19
483
4.000
30
2.9
14300
2460
A22
488
2.609
46
9
14300
2130
G6 H19 K1 K2 F2 M1
4103
3.075
39
5.7
28600
4200
A22 A42 G6 K1 K2 F2 F29 M1
4124
4.063
30
8.5
92800
5500
K2 F8

Pintle Chain Classes

The pintle chain is divided into various classes, ranging from 400 to 900, each with its own set of properties designed for specific industries and uses. The benefits of using a pintle chain depend on the type of chain and the way it is used.

โซ่พินเทิลคลาส 400

The 400 class pintle chains can be used in the same ways as steel detachable chains, but the sprockets don’t need to be changed. They can also hold much more weight than steel detachable chains. This class is also made of cast steel alloys that can handle corrosive and abrasive environments. Our 400-class pintle chains come standard with stainless steel cotters.

โซ่พินเทิลคลาส 600

Pinch chains in the 600 class are strong and come at an affordable price. They are also made with an open barrel that keeps materials from getting stuck in the chain. This series can also be used in abrasive environments.

โซ่พินเทิลคลาส 700

The 700-class pintle chains offer a lot of support and capabilities when it comes to moving or driving over long distances. Carbon steel, cast steel, stainless steel, and non-metallic plastics can be used to make these chains. They are used in sugar, wastewater, mining, and other industries.

โซ่พินเทิลคลาส 800

An 800 class pintle chain is a very strong pintle chain that is often used in mining and other harsh environments. The benefits of these chains come from their special design, which keeps them from breaking under high shock loads and lets them work in situations that aren’t ideal for chains.

โซ่พินเทิลคลาส 900

This type of pintle chain only comes in one size. Because it can withstand rough environments for long periods of time, it is mostly used in palm oil and sugar mills.

โซ่พินเทิลคลาส 600 โซ่พินเทิลคลาส 700
โซ่พินเทิลคลาส 800 โซ่พินเทิลคลาส 900

ข้อดี of the Pintle Chain

Pintle chains have several benefits that allow them to be applicable to various cases involving considerable workload and corrosive-resistant material environments. The advantages of using a pintle chain vary by class and by application.

400 Class Pintle Chain Advantages - The 400 class pintle chains are able to be used in the same applications as steel detachable chains without having to replace the sprockets. They also offer far superior working loads than steel detachable chains. This class is also made out of cast steel alloys that can withstand corrosive and abrasive applications, our 400-class pintle chains come standard with stainless steel cotters.

600 Class Pintle Chain Advantages - 600 class pintle chains offer high strengths at an affordable price point. They are also manufactured with an open barrel design for preventing material buildup within the chain, this series can also run in abrasive applications.

700 Class Pintle Chain Advantages - When it comes to effectively conveying or driving over long lengths the 700-class pintle chains provide ample support and capabilities. These chains are available in carbon steel, cast, stainless steel, and non-metallic plastic options for applications such as sugar, wastewater, mining, and more.

800 Class Pintle Chain Advantages - 800-class pintle chains are a super high-strength pintle chain type that is usually found in mining and highly abrasive applications. The benefits of these chains come with a special design that prevents breakage under high shock-loads and the ability to operate in the most non-ideal chain applications out there.

Advantages of the Pintle Chain

900 Class Advantages - This class of pintle chain only has one size, it's primarily used in palm oil and sugar milling applications because of its ability to handle abrasive atmospheres for long periods of time.

แอปพลิเคชั่น Pintle Chain

1. Wastewater Pintle Chain

There are more than ten kinds of pintle chains that can be used in the capacity of wastewater chain. In recent years, there has been a significant growth in interest in environmental concerns and being more “eco,” which has resulted in a diversification of garbage treatment facilities and waste treatment technologies.

2. Spreader Pintle Chains

In the agriculture industry, it serves as a manure spreader that not only exceeds in strength and durability. But pintle chains are suitable for a range of agriculture machinery applications involving the use of a spreader, including salt spreaders and manure spreaders. The chain moves the material with the help of a crossbar/slats. Precision-punched holes increase load-bearing surface area and maximize the working loads.

The design and materials used are best for conveyor chains adaptable for a wide range of harsh conditions—incinerator ash with water and molten slag.

3. Conveyor Pintle Chains

A wide range of conveyor systems uses pintle chains of various classes known for their great strength and extended wear life. In the design of a pintle chain conveyor, it is critical to remember that the chain is only intended to move in one direction at a time. A chain conveyor is a kind of conveyor that is used to move items along an assembly line and around a factory or warehouse facility.

Chain conveyors often transport heavy unit loads like pallets, grid boxes, and industrial containers. The configuration of these conveyors may be either a single chain strand or a double chain strand. A chain conveyor is a kind of conveyor that is used to move items along an assembly line or around a factory or warehouse facility.

4. Sugar Mills Pintle Chains

Pintle chains, such as precision roller chains, engineering-class roller conveyor chains, bagasse carrier chains, primary cane carrier chains, and drive chains, are developed to function under the rigors of harvesting sugar mills.

It improves harvesting rates for sugar mill-related processes by using a mix of carbon and alloy steels to provide the best chain life possible and extra alternatives such as stainless steel, chrome plating, and nickel plating for specialized service.

แอปพลิเคชั่น Pintle Chain Pintle Chain Uses Pintle Chain สำหรับปุ๋ยคอก

Pintle Chain Matching เฟืองโซ่ Pintle

Our line of pintle chain sprockets ranges in bore size, hub type (A-plate, B-Hub, or C-Hub), and material (cast or steel). Please note that the majority of our steel sprockets are supplied with heat-treating on the teeth, but additional hardened is available upon request. We also supply split, idler, and segmented tooth sprockets. All of our American steel pintle chain sprockets are manufactured using the ASME elongated tooth structure to promote longevity and a self-cleaning design to prevent chain jumping. What separates our pintle chain sprockets from others is the high-quality steel and high-grade cast materials used for each sprocket type; also, the majority of our sprockets are manufactured right here in China! We also stock a full line of premium quality pintle chains.

Stock Pintle Chain Sprockets include chain sizes: 662, 667H, 667X, 667XH, 667J, 88C, 88K, 88XH
Non-Stock Pintle Chain Sprockets include chain sizes: 308C and 58, and these can be manufactured within 1-2 weeks.

Note: Our sprockets directly interchange with other sprocket and chain brands.

เฟืองโซ่ Pintle

Pintle Chain Sprocket Size Chart

This chart shows the standard tooth count size for each pintle chain size. For additional information, select the tooth count needed or part number, or contact us.

662
667
667H
667J
667X
667XH
88C
88K
88XH
6 ฟัน 667B6 667H B6 667J B6 667X B6 667XH B6 88C6 88C6 88C6
7 ฟัน 667B8 667H B8 667J B8 667X B8 667XH B8 88C7 88C7 88C7
8 ฟัน 667B9 667H B9 667J B9 667X B9 667XH B9 88C8 88C8 88C8
9 ฟัน 667C6 667H C6 667J C6 667X C6 667XH C6 88C9 88C9 88C9
10 ฟัน 667C8 667H C8 667J C8 667X C8 667XH C8 88C10 88C10 88C10
11 ฟัน -- -- -- -- -- 88C11 88C11 88C11
12 ฟัน -- -- -- -- -- 88C12 88C12 88C12
13 ฟัน -- -- -- -- -- 88C14 88C14 88C14
14 ฟัน -- -- -- -- -- 88C16 88C16 88C16
15 ฟัน -- -- -- -- -- 88C19 88C19 88C19
16 ฟัน -- -- -- -- -- -- -- --
17 ฟัน -- -- -- -- -- -- -- --
18 ฟัน -- -- -- -- -- -- -- --
19 ฟัน -- -- -- -- -- -- -- --
20 ฟัน -- -- -- -- -- -- -- --

Additional sizes are available upon request.

6 Tooth Pintle Chain Sprocket

เฟืองโซ่ Pintle เฟืองโซ่ Pintle

Our Main Chains Products

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

บรรจุภัณฑ์ของ Cast Pintle Chain

บรรจุภัณฑ์ของโซ่
โซ่ของเรามีจำหน่ายในกล่องขนาด 10 ฟุต ซึ่งรวมถึงลิงค์เชื่อมต่อหนึ่งอันต่อกล่อง แต่เรายังสามารถจัดหาโซ่นี้ตามความยาวที่กำหนดเองได้ตามต้องการ นอกจากนี้เรายังมีเฟืองคุณภาพดีสำหรับโซ่นี้อีกด้วย สำหรับราคาและห้องว่าง โปรดติดต่อเราได้ตลอดเวลา

Cast Pintle Chain Manufacturers

Pintle Chain is made up of a single barrel and link casting. Each casting is then linked together with a steel pin to make a chain. When compared to conventional chains, the castings and links give improved strength, allowing for a wider range of applications. To provide optimal strength and wear resistance, all chain components are heat treated.

Pintle chains are one of the oldest types of chains in use, and their basic yet effective design has made them a popular choice for a variety of purposes for more than a century. The pintle chain is divided into various classes, ranging from 400 to 900, each with its own set of properties designed for specific industries and uses.

All of our steel and cast pintle chains use the most up-to-date production procedures and features to provide you with the highest quality pintle chain available. Pintle chain sprockets, attachments, and more are also available.

China Pintle Chain Manufacturers Cast Pintle Chain Manufacturers
Cast Pintle Chain Manufacturers Cast Pintle Chain Suppliers

ข้อดีของเรา

1. The material shall be 40Cr or above alloy steel.
2. All raw materials are customized by large domestic steel plants. Before entering the plant, secondary tests are carried out to ensure stable and controllable product materials.
3. The basic amount of chain parts have realized white motion and CNC-controlled production.
4. Mesh belt furnaces, infiltration, high frequency, etc., are used for heat treatment to make the chain plate and shaft sleeve reach the working state. The quenching medium is made of Korean Dragon base oil.
5. Professional inspection personnel are assigned to inspect each level to ensure product quality.
6. Over 20 years of operation, we have accumulated a lot of practical experience, especially in the non-standard chain leading city, which enjoys a good reputation in the industry.
